Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | Gooseneck Lowboy Trailer |
Minimum Order Quantity: | 1 unit |
Price: | Negotiable |
Packaging Details: | bulk cargo carrier, RORO or 40HQ container |
Delivery Time: | 30 work days |
Payment Terms: | L/C, T/T, D/P, , Western Union, MoneyGram |
Supply Ability: | 200 Unit/Units per Month |
Type: | Removable Gooseneck Trailer | Name: | Removable Gooseneck Trailer |
---|---|---|---|
Use: | Truck Trailer | Size: | Buyer's Request |
Max Payload: | 80-150 Tons | Material: | Steel |
Oem No.: | Low Boy Trailer | Suspension: | Mechanical Suspension,Air Suspension,leaf Spring |
King Pin: | 2"(50mm) Or 3.5"(90mm) | Landing Gear: | JOST |
Color: | Customers Optional | Axle: | 3 Axle |
Product Name: | TITAN Rgn Lowboy Trailer | Function: | Heavy Equipment Tranportation |
Keywords: | Lowboy Trailer | Brake System: | WABCO Valve |
Dimension: | Customised,we Can Design | Usage: | Transport Heavy Duty Machinery |
Condition: | New |

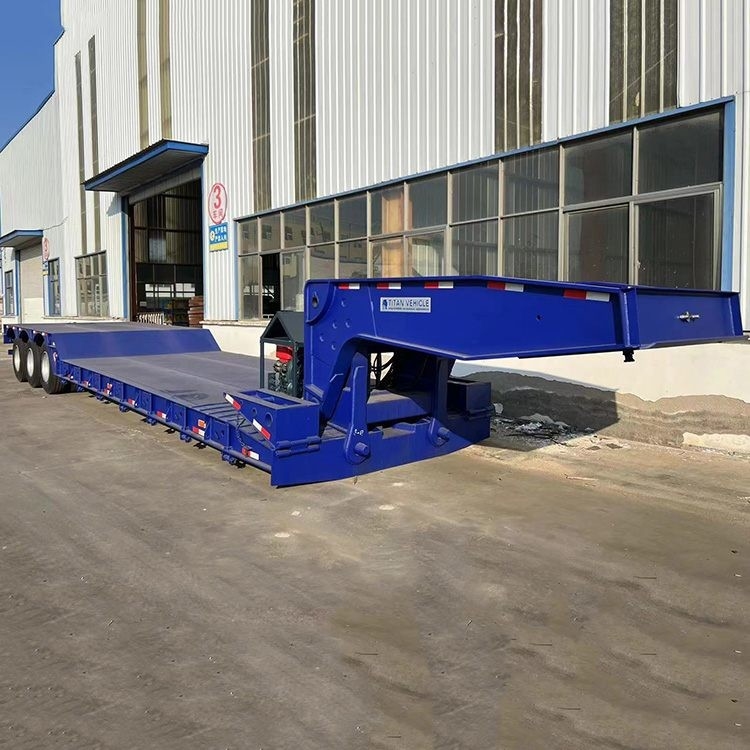

Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front of the trailer and the ground. After the equipment is loaded, the trailer can be restored to its original condition.
60 ton lowboy trailer for sale is suitable for long-distance transportation of construction machinery and some non removable machine. The detachable gooseneck trailer is used to load and transport construction machinery, such as excavators, forklifts, harvesters and other construction machinery, ect.
Attention: Different configurations, different prices, the final price is based on actual negotiation results!!
Dimension(L*W*H) | 15800*3000*3400mm ( Details will be according to the drawing) |
Loading capacity | 80-150 ton |
Axle | 3 axles, TITAN brand |
Tire | 12 pcs |
Frame | Material: Q 550 high strength steel, Main beam height: 450mm upper plate thickness:27mm, down plate thickness: 27mm, middle plate: 18mm |
Working platform | 7600mm |
Floorplate | 5mm, diamond plate |
Suspension | spring suspension, air suspension, bogie suspension |
Braking system | WEBCO |
King Pin | 2" 50# or 3.5" 90# |
Electric System | 24V, LED light |
Color |
white, blue, yellow, green, red, color optional |
If you're interested in more details or other models, welcome to search "TITAN vehicle" on Youtube, thanks!
Pay attention to something of the lowboy gooseneck trailer for sale:
Cargo weight: Please select the correct model to transport your cargo. If you plan to transport more than 60 tons of cargo, please consider buying a lowboy equipment trailers.
The 100 ton lowboy trailer has a high load capacity and can transport heavy objects. In addition, the lower deck ensures that heavy objects remain stable during transportation.
Cargo dimension: It is important to consider the dimensions of your cargo when choosing a detachable trailer model. Consider the width and height, especially if your country has height limitations for transportation vehicles.
Loading process: Although mechanical detach lowboy equipment trailers are very suitable for loading heavy goods, if you use lifting equipment, ordinary trailers may be the best choice. Most low-bed trailers are loaded from the front or rear.
When you need to remove the gooseneck from the tractor so that the gooseneck remains attached to the mechanical detach lowboy semi trailer frame. Secure the safety hook with a pin to fix the gooseneck in place and prevent the gooseneck from tipping forward.
