Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | COC ,SGS , BV , CCC , COC , ECTIV , PVOC |
Model Number: | fuel tanker trailer |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Container, RORO or BULK |
Delivery Time: | 25 work days |
Payment Terms: | L/C, T/T, D/P, Western Union, MoneyGram |
Supply Ability: | 300 Unit/Units per Month |
Type: | Oil Tanker Trailer | Other Name: | Carbon Steel Tanker Trailer |
---|---|---|---|
Material: | Steel | Product Name: | TITAN Fuel Tanker Truck Trailer |
Function: | Fuel,or Other Liquid Transportation,Transport Diesel Or Gasoline | Size: | Buyer's Request |
Max Payload: | 45 - 100 Tons | Suspension: | Leaf Spring Suspension,Mechanical / Air |
King Pin: | 90# | Landing Gear: | JOST Brand Two-speed |
Use: | Truck Trailer | Color: | Customers Optional |
Axle: | Optional | Tank Material: | Carbon Steel |
Brake System: | WABCO Relay Valve | Volume: | Optional |
Manhole: | Explosion-proof Type,Optional | Discharge Valve: | 2 Units, 3" Ball Valve. |

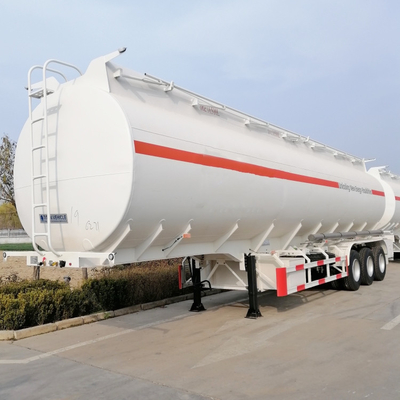

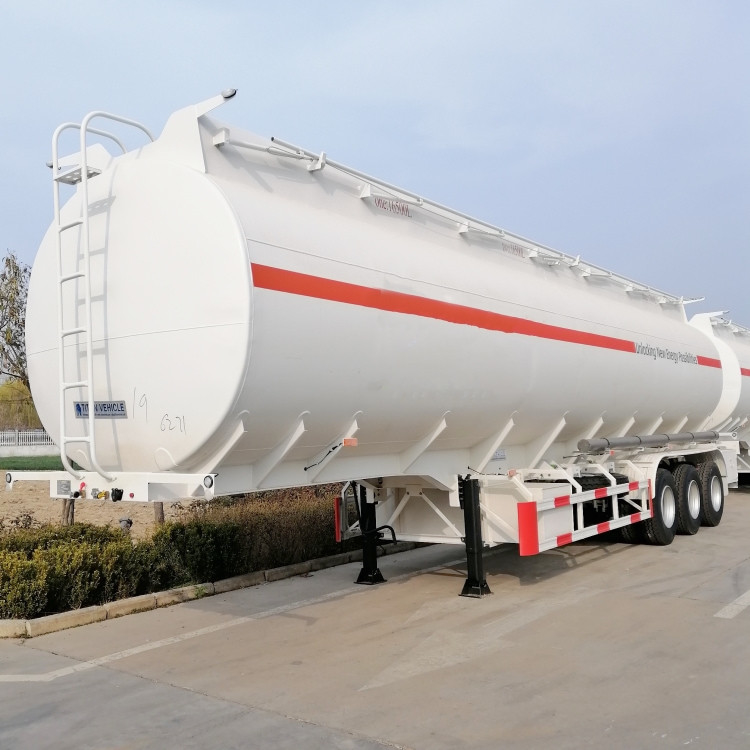

The Fuel tanker trailer for sale tank body is automatically welded by an advanced large-scale special welding machine. The TITAN fuel trailers body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
TITAN offers carbon steel, stainless steel or aluminum material fuel tanker trailer for sale. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.
1. Tank cover: TITAN fuel tanker trailer uses the European standard explosion-proof manhole cover. Including breathing valve, oil and gas recovery valve and anti overflow valve. The outlet at the bottom of the tank is equipped with an emergency shut-off valve - undersea valve, When the tank body collides and rolls over, the tank cover will not be opened. |
2. TITAN uses Q345 low carbon alloy steel to make the fuel tanker trailer, which is 5mm thick and very solid. TITAN tank body uses the most advanced welding technology. |
3. Quality test: water test, air pressure test. Ensure that the oil and gas will not volatilize under high temperature, and ensure the safety of the vehicle during driving and parking. |
4. Anti wave plate is set in the tank to reduce the impact of liquid on the tank. The tank body is equipped with thickened anti wave plate to reduce the direct impact of liquid on the tank body. |
Brand | TITAN oil tank trailer |
Tank Body | |
Tank Capacity | 40,000-60000liters |
Tank Material | carbon steel |
Compartments | 1 to 7 compartments, based on customer needs |
Discharge | 3” or 4” ball valves |
Discharge Pipes | 2 units |
Ladder | The tank is equipped with a front or rear ladder to facilitate the arrival of manholes. |
Chassis | |
Main Beams | Q345B steel fabricated I beams. |
Landing Gears | JOST |
Axles | 3 axles |
Brake System | WABCO |
