Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | side wall trailer |
Minimum Order Quantity: | 1unit |
Price: | USD 8900-11000/UNIT, Negotiable |
Packaging Details: | Nude Packing |
Delivery Time: | 20 work days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 200 Set/Sets per Month |
Type: | 2023 New China Flatbed Trailer With Side Wall | Use: | Truck Trailer |
---|---|---|---|
Keywords: | China Side Wall Trailer | Material: | Steel |
Size: | 13000*2500*3400mm | OEM No.: | Removable Side Wall Trailer |
Max Payload: | 60t | Loading Capacity: | 40 Ton-60 Ton |
Function: | Carry 20ft 40ft Container And Bulk Cargo | Axle: | 3*13 Ton BPW, FUWA Axle |
Landing Gear: | High Quality JOST Landing Legs | Condition: | Brand New Trailer |
King Pin: | 3.5"(90mm) JOST | Suspension: | Mechanical Leaf Spring Suspension 10pieces |

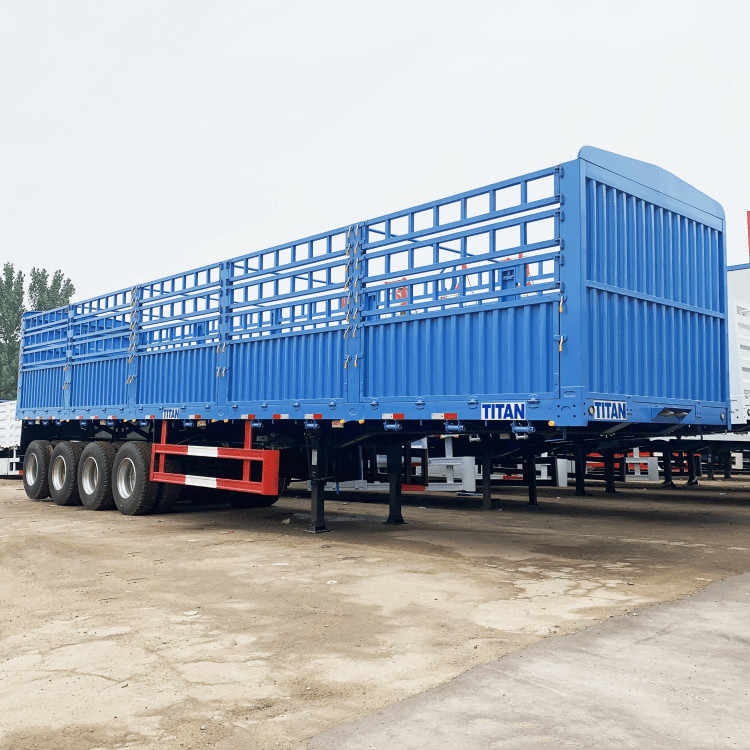

The fence livestock semi truck trailer use to load a wide range of bulk cargo, like sand, bags, poultry etc. 4 axle livestock trailer is very widely used in the transportation industry.
Livestock truck trailer is suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The fence livestock semi truck trailer can be added with a container turn lock to transport the container.
Sidewall trailer has a sidewall structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable side wall height.
(1)Bottom Floor, many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the Titan Drop Side Body Trailers passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.
(2)Suspension. TITAN multi-function trailer suspension adopts special high-strength steel. 6mm thickness. Center pin diameter is 70mm.
Stronger than suspensions in many factories.Stronger than suspensions in many factories.
(3) The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of aSide Panel Cargo Semi Trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
The international standard thickness of the middle part of the beam must be 8mm.
(4) Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.
The door frame is a 40x60mm rectangular steel tube.
Remark | This Specification just for your reference, we can produce fence semi trailer as your demands. |
Dimensions | 13000mm*2500mm*3400mm |
Side wall | 1200mm |
Loading Capacity | 60 Ton |
Tire | 12R22.5, 12units |
Rim | 9.00-22.5, 12units |
Axles | BPW, FUWA, TITAN brand |
King Pin | 3.5 inch JOST Brand |
Brake System | WABCO Valve and relays/ABS |
Landing Gears | JOST Landing gear |
Susension | Mechanical spring suspension |
Electrical | 24 V |
Light | LED light ( speically intended for africa market) |
Container lock | Optional |
If you are interested, welcome to the inquire to us! Please fill in your contact information and suggestions! Thank you!
