Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | Dump Truck Trailer |
Minimum Order Quantity: | 1 unit |
Price: | USD 10000-18000, Negotiable |
Packaging Details: | Bulk cargo or RORO shipping |
Delivery Time: | 25 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 Unit/Units per Month |
Type: | Dump Trailer Prices | Power: | Hydraulic Cylinder |
---|---|---|---|
Size: | 11000*2500*4000mm | Capacity: | 40-100ton |
Volume: | 35-45cbm | Axle: | 2/3/4/5 Axles |
Use: | Truck Trailer | Material: | Steel, Carbon Steeel |
Other Name: | Tipper Trailer | High Quality: | Truck End Tipping Trailer |
Place Of Origin: | Shandong, China | Product: | 3 Axle Dump Truck Trailer |
Condition: | New | Tire: | 8/12/16/20 Units |
Landing Leg: | JOST |

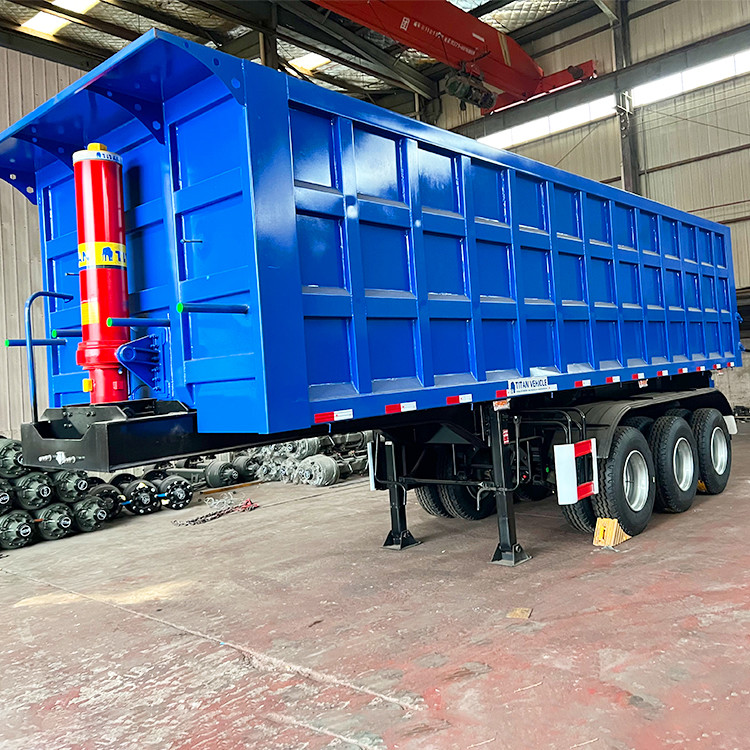

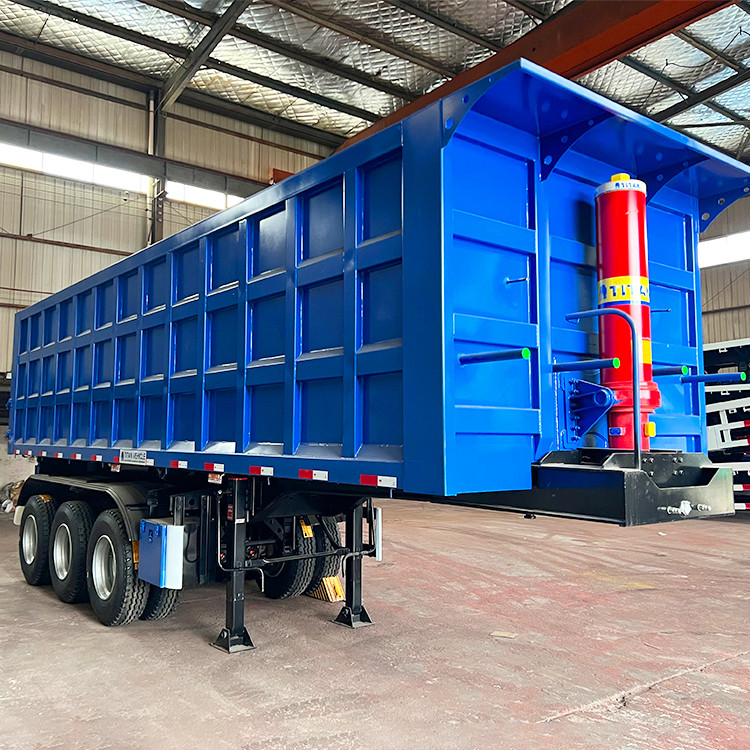

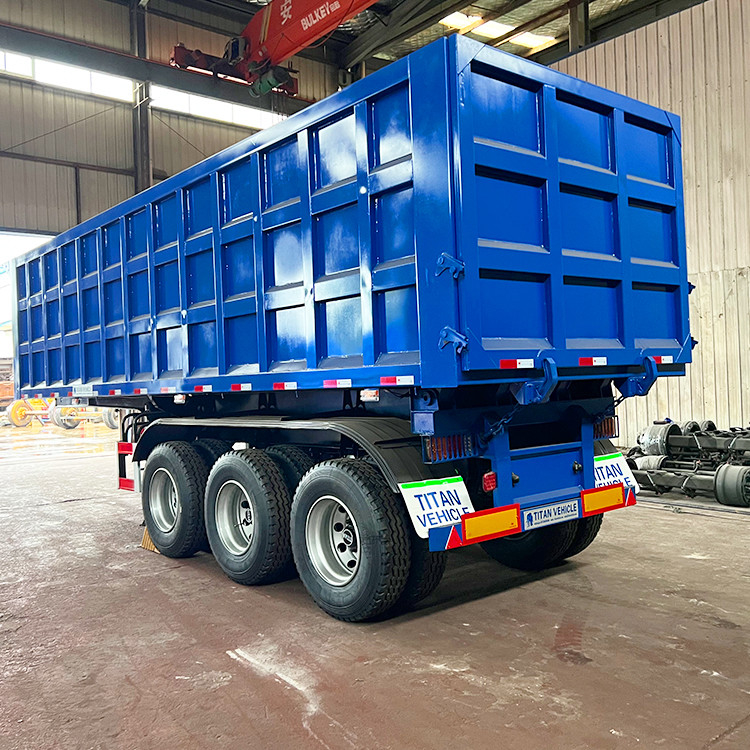

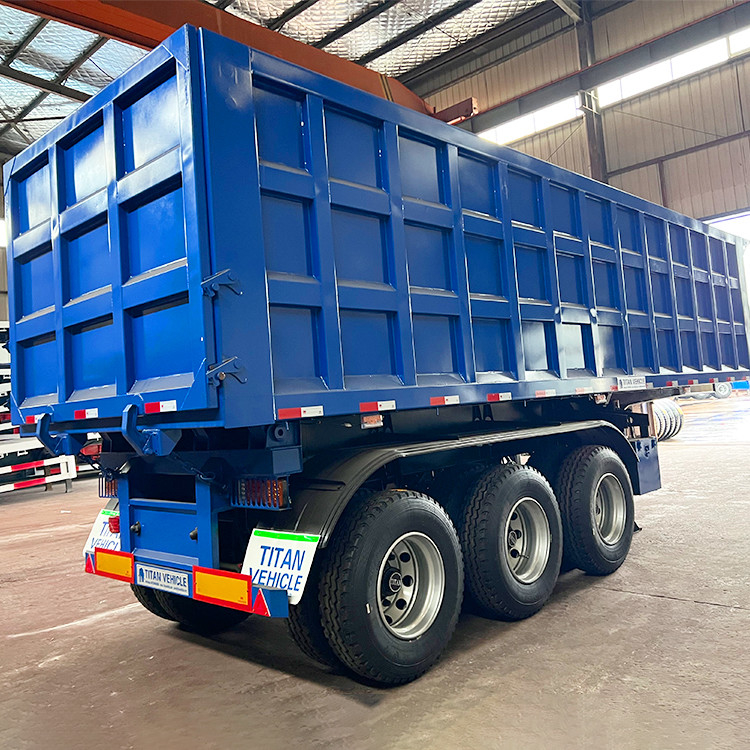

A dump truck trailer also known as a rear tipper trailer works by offloading cargo towards the back area. Dump trailers will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained. The rear tipper design is meant to facilitate the offloading process.
There are four types of semi trailer tipper: rear dump semi trailer, container dump trailer, side tipper trailer for sale, dump truck and trailer for sale, 20&40 feet Container Tipper Semi Trailer.
The dumper trailer for sale manufacturer’s hydraulic dump trailer can be customized from 15 tons to 80 tons semi dump trailer capacity, 80 tons to 120 tons new tipper trailers for sale, 120 tons-180 tons tractor tipper trailers for sale of different tonnage according to the different cargoes. The volume of the semi tipper trailers for sale can be customized according to the needs of the customers.
Product Name | Tipper Trailer/Dump Semi Trailer | ||
Function | Transport heavy Stone and Sand | ||
Loading weight | 80t | ||
Main beam | The height of the beam is 480 mm, upper plate is14mm,down plate is 14mm,middle plate is 8mm. | ||
Toolbox | 1 unit | ||
Traction pin | JOST Brand, optional 2" or 3.5" | ||
Land gear | Standard 28ton | ||
Axle | 13ton for each axle | ||
Axle brand | FUWA Brand axle | ||
Suspension type | mechanical suspension |
1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
2. Double-plate main beam for heavy-duty dump trailer, which has a stronger carrying capacity, it is not easy to damage.
3. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
4. The leaf spring is widened and thickened, the shock absorption effect is good.
5. Strengthened Ribs, unique structure design to maximize the payload.
Video show:
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.
To prevent the TITAN tipper semi trailer paint from being corroded by seawater, TITAN sprays a layer of wax on the surface of the dump trailer before shipping, and then seal it with a waterproof rain cloth.
