Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE/BV/CCC/SGS |
Model Number: | lowbed trailer |
Minimum Order Quantity: | 1 UNIT |
Price: | Negotiable |
Packaging Details: | Naked, waxing on RORO or Bulk Ship or by 40GP, 40HQ,40FR |
Delivery Time: | 10 working days |
Payment Terms: | D/A, D/P, T/T,, Western Union,, MoneyGram |
Supply Ability: | 300 unit per month |
Model: | TITAN 3 Axle Low Bed Trailer For Sale With Ramp | Capacity: | 60-80 Ton |
---|---|---|---|
Length: | Customizable | Axles: | 3 Axles |
Landing Gear: | 28ton | Material: | Steel |
Use: | Machinery And Equipment Transportation | Suspension: | Mechanical / Air / Single Point Suspension |
King Pin: | 90#/50# | Function: | Transport Heavy Equipments |
Color: | Optional |
Low bed trailer with ramp, a type of semi-trailer widely used to transport construction materials and heavy machinery, has a low height and a strong frame design.
Higher side beams are closely related to load distribution, which not only improves the overall airflow distribution of the 3 axle low bed trailer, but also extends the service life of the low bed trailer with ramp.
By using precise welding technology, the low bed trailer for sale provides greater bending resistance when subjected to longitudinal and lateral loads, which helps to improve the overall reliability of the low bed trailer for sale.
The downward-pressed forehead is closely integrated with the overall structure of the 3 axle low bed trailer, which facilitates direct access by forklifts and other loading and unloading equipment, improving the efficiency of 3 axle low bed trailer in transporting large goods.
In rainy or humid environments, low bed trailer for sale reduce the risk of sliding and accidental falls by using a 5mm thick non-slip bottom plate. Under heavy load conditions, the 5mm thickness provides good resistance to deformation and better resistance to wear and impact from cargo.

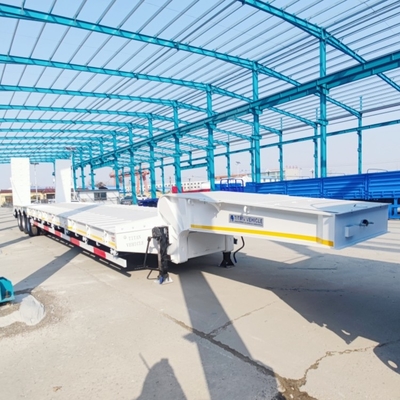

TITAN 3 Axle Low Bed Trailer for Sale With Ramp

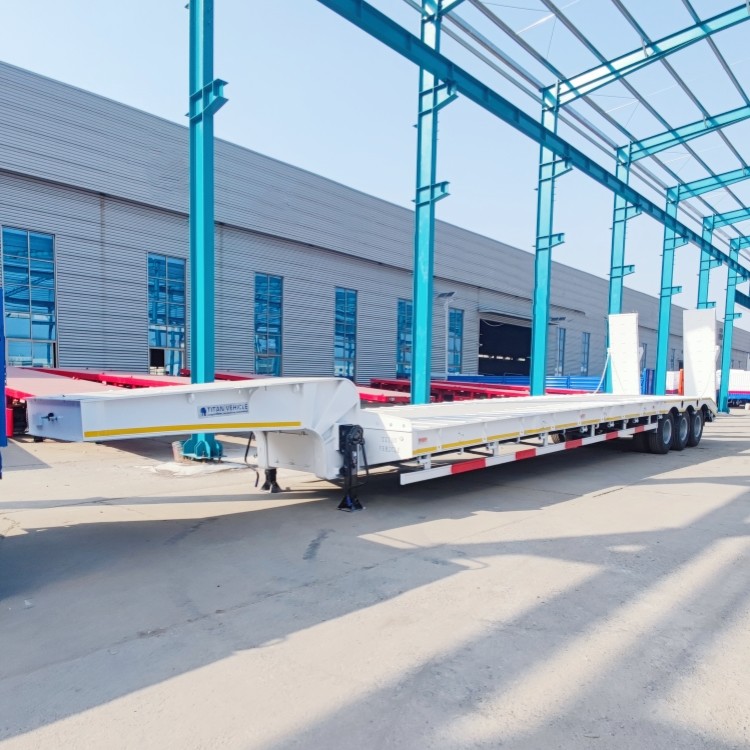

TITAN 3 Axle Low Bed Trailer for Sale With Ramp

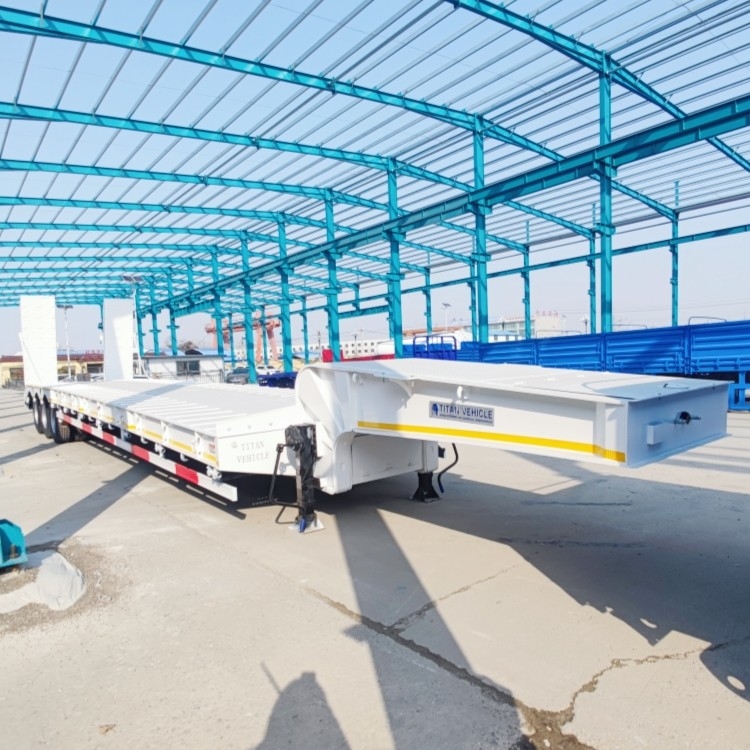

TITAN 3 Axle Low Bed Trailer for Sale With Ramp
Brand | TITAN 3 Axle Low Bed Trailer for Sale With Ramp |
Overall dimension | Overall dimension: 13000*3000*3400mm |
Loading capacity | 60-80 Ton |
Axle | 3 axles, 16T, TITAN Brand |
Suspension | Heavy duty Mechanical Spring suspension |
Tire | 12units,12R/22.5 |
Landing gear | Fuwa |
Brake system | WABCO |
Kingpin | 90# |
Electrical system | 24V, LED lights |
Main Beam | Height: 550mm, Upper plate: 22mm, Middle plate: 22mm, Lower plate: 22mm, Material: HG60 steel. |
Bottom Platform | 5mm thick checkered plate |
Ramp | Spring ladder |
Gooseneck | Optional |
ABS | Optional |
1. Main beam and side beam
By using a main beam with a yield of 620MPA or more, the overall load-bearing capacity and stability of the low bed trailer with ramp are ensured. Even when carrying extremely heavy cargo, the main beam of the 3 axle low bed trailer is not easy to bend and deform.And the whole low bed trailer for sale can effectively maintain the integrity and stability of the structure. The anti-bumping ability of the 300mm high side beam has been increased by 3 times, which enhances the strength of the low bed trailer for sale. They not only help to disperse the load, but also reduce stress concentration when the low bed trailer with ramp is overloaded, ensuring safe transportation.
2. Diagonal support
The diagonal support design of the 3 axle low bed trailer further improves the stability of the whole vehicle. The service life of the diagonal support is more than 10 years, and it also effectively prevents the risk of overturning of the 3 axle low bed trailer by balancing the center of gravity.
3. Tire well reinforcement
In heavy-duty transportation, the tire well is the core part that bears gravity. The low bed trailer for sale adopts a whole-block reinforcement design at the tire well, which is different from the partial reinforcement of the tire well. In order to avoid the risk of tire damage under heavy load, the reinforcement design increases the strength of the low bed trailer for sale tire well. The reinforcement design also disperses the pressure between the tire and the chassis.
4. Reinforced vertical plate at trapezoidal weld
Not only does it use a G-type scale within 80 tons. The overall load-bearing capacity of the 3 axle low bed trailer is further enhanced by the reinforced vertical plate design at the trapezoidal weld. This superb welding skill ensures the firmness of the welding parts, reduces the structural damage caused by impact and vibration during transportation, and improves the durability of the low bed trailer with ramp.
5. Reinforcement of the vertical plate under the gooseneck
The reinforcement design of the vertical plate under the gooseneck is also a reinforcement of the key parts of the low bed trailer with ramp, which improves the stability of the low bed trailer for sale. When the 3 axle low bed trailer goes downhill at a large angle, this design ensures that the weight can be effectively supported, thereby reducing the risk of accidents.
6. High-elastic double-spring ladder
In order to improve loading and unloading efficiency, the low bed trailer for sale is equipped with a high-elastic double-spring ladder. In order to achieve a more stable and flexible ladder lifting process, the 3 axle low bed trailer adopts a double-spring design. Whether it is the loading and unloading of high goods or the entry and exit of bulk goods, it is not difficult for the low-profile car. In addition, the high elasticity design also reduces the manual burden during use and improves the safety and convenience of low bed trailer with ramp's operation.
7. Powder coating
Powder coating, an important process for surface treatment of low bed trailer for sale, can effectively extend the service life of the vehicle. After adopting this process, a thick protective film is formed on the surface of the vehicle body. This film not only helps the 3 axle low bed trailer resist wear and corrosion, but also makes the vehicle surface more beautiful and improves the overall visual effect.
Here is the vdieo of 3 Axle Low Bed Trailer for Sale With Ramp.
