Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE/BV/CCC/SGS |
Model Number: | lowbed trailer |
Minimum Order Quantity: | 1 UNIT |
Price: | Negotiable |
Packaging Details: | Naked, waxing on RORO or Bulk Ship or by 40GP, 40HQ,40FR |
Delivery Time: | 10 working days |
Payment Terms: | D/A, D/P, T/T,, Western Union,, MoneyGram |
Supply Ability: | 300 unit per month |
Model: | TITAN 4 Line 8 Axle Semi Low Loader Trailer For Sale | Capacity: | 120 Ton |
---|---|---|---|
Length: | Customizable | Axles: | 4 Line 8 Axles |
Landing Gear: | 28ton | Material: | Steel |
Use: | Machinery And Equipment Transportation | Suspension: | Mechanical / Air / Single Point Suspension |
King Pin: | 90#/50# | Function: | Transport Heavy Equipments |
Color: | Optional |
Titan semi low loader trailer adopt a variety of novel designs, which make them show excellent advantages in heavy cargo transportation. Such as the gooseneck downward pressure design and double-layer vertical board, widened and heightened side beams, flexible double-layer folding hydraulic ladders and stable four-line eight-bridge axles. These low-bed designs not only improve the safety and efficiency of cargo transportation, but also provide truly effective solutions to meet your various complex transportation needs.
After spraying polyurethane paint, this means that semi low loader trailer can still maintain good appearance and internal structural integrity in harsh environments, reducing the cost and frequency of repairs and maintenance.
The surface of polyurethane coating is tough and can resist bumps and scratches, ensuring that the vehicle body is not easily damaged during long-term use.

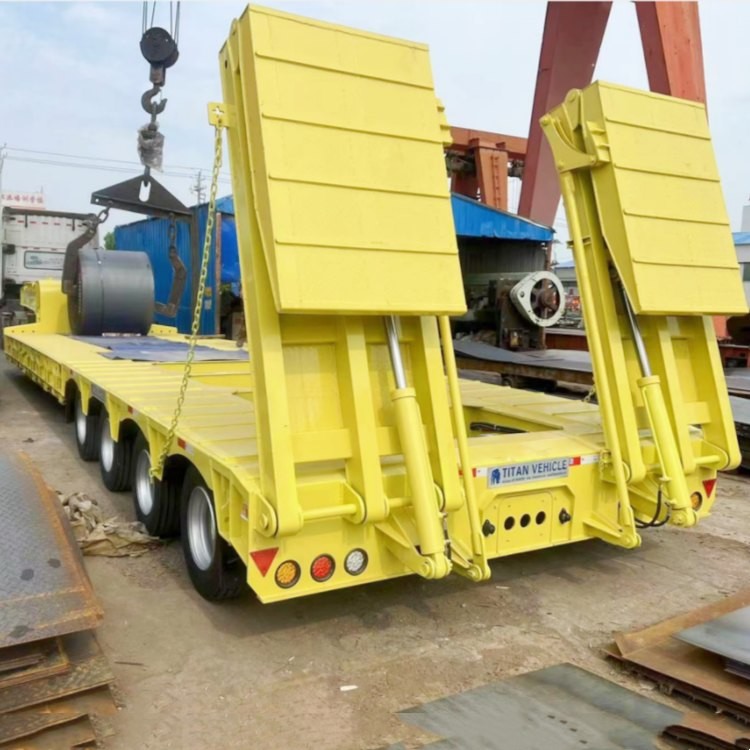

TITAN 4 Line 8 Axle Semi Low Loader Trailer for Sale
TITAN 4 Line 8 Axle Semi Low Loader Trailer for Sale
TITAN 4 Line 8 Axle Semi Low Loader Trailer for Sale
Brand | TITAN 4 Line 8 Axle Semi Low Loader Trailer for Sale |
Overall dimension | Overall dimension: 18400mm * 3500mm *3400mm |
Loading capacity | 100-120 Ton |
Axle | 4 Line 8 axles |
Suspension | Heavy duty Mechanical Spring suspension |
Tire | 32units,12R/22.5 |
Landing gear | JOST |
Brake system | WABCO |
Kingpin | 90# |
Electrical system | 24V, LED lights |
Main Beam | Height: 550mm, Upper plate: 22mm, Middle plate: 22mm, Lower plate: 22mm, Material: HG60 steel. |
Bottom Platform | 5mm thick checkered plate |
Ramp | Folding ladder |
Gooseneck | Optional |
ABS | Optional |
Here is the vdieo of 4 Axle 40 Ft Semi Low Bed Trailer for Sale.
Please leave your information without hesitation to get more details and service.
1. Gooseneck design
(1) Downward-pressed gooseneck
In order to make semi low loader trailer more stable when transporting high-center-of-gravity goods, Titan uses a downward-pressed gooseneck design to lower the center of gravity of semi low loader trailer and reduce the risk of rollover. In addition, this design can provide a larger loading height, making it easier for semi low loader trailer for sale to load extra-high goods. When loading heavy objects, the gooseneck will not tilt and deform due to force, and the loading efficiency will be improved.
(2) Double-layer vertical plate under the gooseneck
The double-layer vertical plate structure under the gooseneck enhances the overall load-bearing capacity of semi low loader trailer for sale. This design of semi low loader trailer effectively disperses the pressure from the goods and reduces the deformation and wear of the gooseneck area. During transportation, this design ensures that equipment and goods are firmly fixed, reducing the possibility of them moving and tilting on the semi low loader trailer, thereby ensuring the safety and stability of transportation.
2. Side beam design
(1) Widened and raised side beams
Through the widened and raised side beam design, Titan provides stronger lateral support for semi low loader trailer for sale. This design not only increases the load-bearing capacity of the semi low loader trailer for sale, but also expands the cargo loading space. The combination of wide and high side beams allows the semi low loader trailer for sale to transport a wider variety of items, especially for wide or heavy equipment. It also ensures the safety and stability of the semi low loader trailer for sale during transportation.
3. Ladder design
(1) Double-layer folding hydraulic ladder
The double-layer folding hydraulic ladder, as a major innovative design of the semi low loader trailer, improves loading and unloading efficiency. You can flexibly adjust the ladder of the semi low loader trailer according to your needs. This ladder can support the up and down transportation of goods of different heights. The addition of the hydraulic system makes loading and unloading operations easier, reducing labor costs and safety hazards. Whether it is low objects or high heavy equipment, the double-layer ladder can ensure that the semi low loader trailer for sale can easily cope with loading and unloading tasks.
4. Axle design
(1) Four-line eight-bridge axle
Titan has greatly improved the load-bearing capacity and stability of the semi low loader trailer for sale through the design of four-line eight-bridge axles. When transporting overweight items, this combination can not only disperse the pressure caused by the heavy load, but also enhance the flexibility and stability of the semi low loader trailer vehicle during driving. In order to reduce the risk of accidents, the four-wheel drive system ensures the balance of the semi low loader trailer for sale and improves driving safety.
