Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | Skeleton Trailer |
Minimum Order Quantity: | 1 unit |
Price: | USD 6000-8000 |
Packaging Details: | Bulk cargo or RORO shipping |
Delivery Time: | 25 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 Unit/Units per Month |
Other Name: | Skeletal Trailer | Material: | Carbon Steeel |
---|---|---|---|
Payload: | 50-60T | Axle: | 2/3/4 Axles |
Tire: | 8/12/16 Units | Landing Leg: | Jost |
Braking System: | Wabco | King Pin: | 2in Or 3.5in Jost Brand |
Suspension: | Heavy Mechanical Suspension |
Product Description:

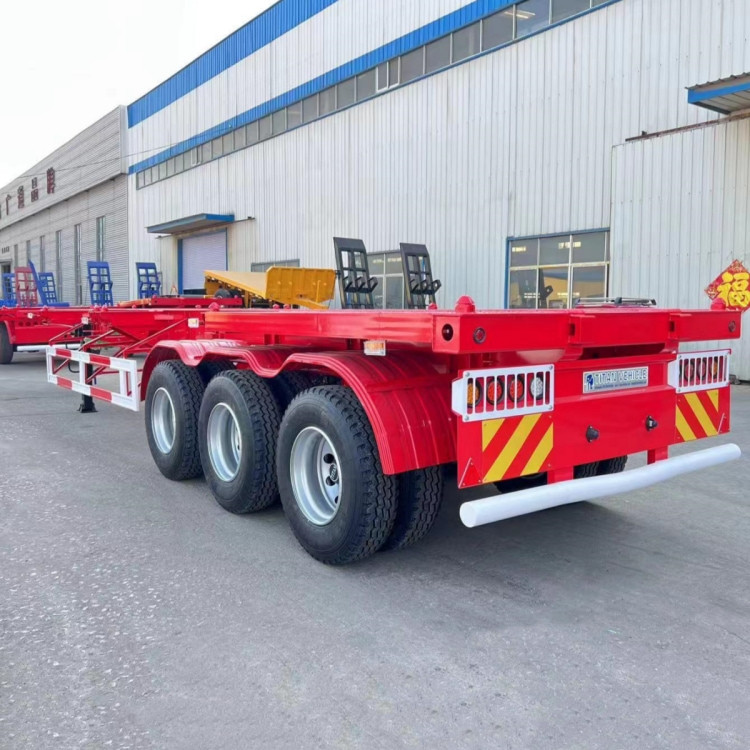

TITAN skeletal semi trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.
Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength .
We can provide all the models you need and support customization. Please leave your enquiry if you have any questions.
Feature:
1. Titan skeleton trailer uses high strength steel Q345 to make the girders with higher bearing capacity and service life of more than 10 years.
2. The container trailer is reinforced with a girders under the gooseneck. Gooseneck double-layered beam vertical board. When the vehicle is overloaded, the deformation is small and better.
3. We optional JOST legs are recognized worldwide as famous brand accessories. Better carrying capacity and long service life.
4. The suspension is reinforced before, after and after the suspension. Separate road conditions for Africa involve meeting dirt roads and poor road conditions.
Video show:
Specification:
Type | Container Flatbed Semi Trailer |
Overall dimensios | 12500x2500x1550 mm |
Loading weight | 60ton - 80 ton |
Container twist lock | 8/12 pcs |
Main beam | Q345B steel |
Side beam | 16 U shaped steel or I shaped steel |
Axle brand | 13 ton axle FUWA brand |
Traction pin | 2” or 3.5” |
Landing gear | Standard 28 ton, brand optional |
Suspension system | Mechanical suspension, air suspension is optional |
Tire | 12.00R22.5 Triangle brand tires, others tires optional |
Brake | 6 big chamber brake system |
Tool box | 1 unit |
Side marker lamp | LED type |
Voltage | 24V |
