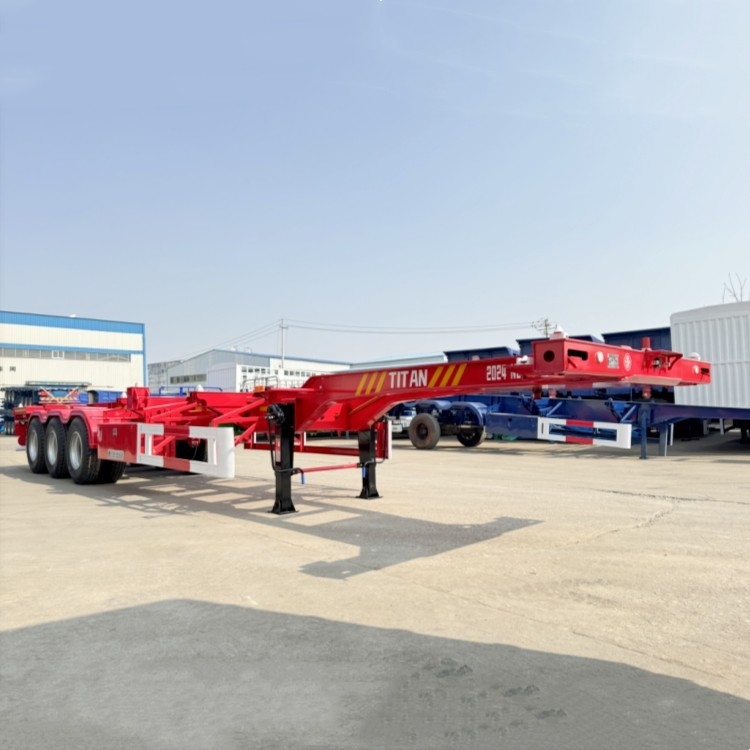

TITAN 3 Axle New 40 Ft Container Chassis for Sale

Basic Information
Place of Origin: China
Brand Name: TITAN
Certification: CE
Model Number: Skeleton Trailer
Minimum Order Quantity: 1 unit
Price: USD 6000-8000
Packaging Details: Bulk cargo or RORO shipping
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Unit/Units per Month
Detail Information
Other Name: Skeletal Trailer Material: Carbon Steeel
Payload: 50-60T Axle: 2/3/4 Axles
Tire: 8/12/16 Units Landing Leg: Jost
Braking System: Wabco King Pin: 2in Or 3.5in Jost Brand
Suspension: Heavy Mechanical Suspension

Product Description

TITAN 3 Axle New 40 Ft Container Chassis

New container chassis for sale, a specialized vehicle designed to transport containers of various sizes, have a solid structure, a safe and flexible design, and durable materials.

40 Ft Container Chassis for Sale Price : 9800USD

Durability of New Container Chassis for Sale

1. 12R22.5 tires

With a large contact area and strong wear resistance, the new container chassis for sale can provide excellent driving performance under various road conditions. This tire not only enables the new container chassis for sale to withstand heavy loads, but also ensures the low failure rate and high durability of the vehicle.

2. Polyurethane paint

The 40 ft container chassis for sale is surface treated with polyurethane paint to have excellent corrosion resistance and weather resistance. Therefore, the damage of various environmental factors such as sun exposure, rain and snow can be effectively resisted by the 40 ft container chassis for sale. This coating not only extends the service life of the 40 ft container chassis for sale, but also improves the brightness and aesthetics.

3. Reinforced outriggers

The reinforced outriggers of the new container chassis for sale achieve dynamic balance while bearing greater weight and pressure. This design effectively reduces damage to the new container chassis for sale during unloading and parking, and improves its durability.

 TITAN 3 Axle New 40 Ft Container Chassis for Sale

TITAN 3 Axle New 40 Ft Container Chassis for Sale

TITAN 3 Axle New 40 Ft Container Chassis for Sale

TITAN 3 Axle New 40 Ft Container Chassis for Sale

TITAN 3 Axle New 40 Ft Container Chassis for Sale

TITAN 3 Axle New 40 Ft Container Chassis for Sale




Specification of New Container Chassis for Sale

Type New 40 Ft Container Chassis for Sale
Overall dimensios 12500x2500x1500mm
Loading weight 60ton - 80 ton
Container twist lock 12 pcs
Main beam Q345B steel,500mm Height,8mm Thick
Side beam 16 U shaped steel or I shaped steel.  160mm Width
Cross beam 100mm
Axle brand 16 ton axle TITAN brand
Traction pin 2” or 3.5”
Landing gear Standard 28 ton, brand optional
Suspension system Mechanical suspension, air suspension is optional
King Pin 70mm
Tire 12.00R22.5 Triangle brand tires, others tires optional
Brake 6 big chamber brake system
Brake Pads 220mm
Tool box 1 unit
Side marker lamp LED type
Voltage 24V



Stability of New 40 Ft Container Chassis

1. Shorter diagonal support

By adopting shorter diagonal support, the center of gravity of the new container chassis for sale is dynamically balanced, and the overall stability of the 40 ft container chassis for sale is also stronger. The lower center of gravity makes the 40 ft container chassis for sale better at dealing with the risk of rollover during transportation. Especially when making sudden turns and driving on gravel roads, the 40 ft container chassis for sale can ensure the safety of the goods.

500mm high and 8mm thick main beam

With a 500mm high and 8mm thick main beam, the large-section main beam design of the new container chassis for sale has a strong load-bearing capacity. It can not only effectively bear and disperse the pressure of the goods on the new container chassis for sale, but also provide strong structural support for the new container chassis for sale.

2. Q345 high-strength structural steel

With the main material of Q345 high-strength structural steel, the 40 ft container chassis for sale is endowed with excellent tensile strength and toughness. In terms of load-bearing, thicker steel can well resist various external forces, further improving the overall stability of the 40 ft container chassis for sale.

Video of  New Container Chassis for Sale

Sharing the video of new container chassis for sale with you.

TITAN eagers to receive your contact messages if you like this new container chassis for sale.

TITAN 3 Axle New 40 Ft Container Chassis for Sale

Advantage of New Container Chassis for Sale

1. Safety
Container lock
The container on the 40 ft container chassis for sale is firmly fixed by equipping it with an efficient container lock. The strong container lock improves the safety of the new container chassis for sale by reducing the tilting or movement of the cargo on the new container chassis for sale.

220mm thick brake pads
In order to provide excellent braking effect for the new container chassis for sale, the 220mm wide brake pad design enables the 40 ft container chassis for sale to stop quickly. When driving at high speed or fully loaded, the braking system ensures the flexible control and safety of the 40 ft container chassis for sale, greatly reducing the chance of traffic accidents.

Side protection bumper
The side protection bumper is equipped to protect the body and side containers, reducing the damage caused by collision or scratches during the driving of the 40 ft container chassis for sale.

2. Easy maintenance and maintenance
Simplified design structure
The relatively simple new container chassis for sale structure reduces the possibility of its own mechanical failure. Key components such as the brake system and suspension configuration are designed in easy-to-access positions, which facilitates the daily inspection and maintenance of the new container chassis for sale and brings the maintenance cost to a new low.

3.Durable materials
Compared with other freight vehicles, the new container chassis for sale adopts wear-resistant materials, which is not easy to wear during use, reducing the relative maintenance frequency. This design has a positive effect on improving the efficiency of 40 ft container chassis for sale and reducing operating costs.

Modular components

The design of the 40 ft container chassis for sale adopts modular components, such as tires, brake pads and suspension, which are easy to replace and repair quickly. This design is to improve the maintenance efficiency of the 40 ft container chassis for sale and enable the new container chassis for sale to quickly resume normal operation.
