Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | Skeleton Trailer |
Minimum Order Quantity: | 1 unit |
Price: | USD 6000-10000 |
Packaging Details: | Bulk cargo or RORO shipping |
Delivery Time: | 25 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 Unit/Units per Month |
Other Name: | Container Chassis Trailer | Material: | Carbon Steeel |
---|---|---|---|
Payload: | 60-80T | Axle: | 2/3/4 Axles |
Tire: | 8/12/16 Units | Landing Leg: | Jost |
Braking System: | Wabco | King Pin: | 2in Or 3.5in Jost Brand |
Suspension: | Heavy Mechanical Suspension |
Product Description:

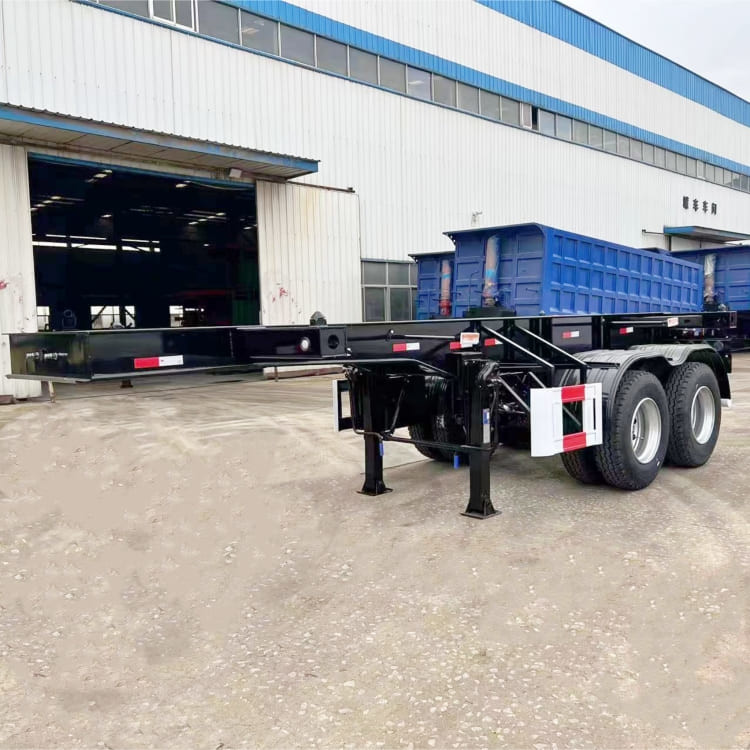

40ft shipping container trailer for sale is specially used for the transportation of various containers. It can be used repeatedly for a long time and has high strength characteristics. 40 ft container trailer for sale is widely used in modern logistics transportation.
Use a 20 ft container trailer for sale to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.
TITAN 20 ft shipping container trailer for sale can be customized to 2/3/4 axle. We also provide customers with different options: 20/40/45/48/53 ft, airbag suspension, spring steel suspension.
We can provide all the models you need and support customization. Please leave your enquiry if you have any questions.
Type | Skeletal Semi Trailer |
Overall dimensios | 7500x2500x1550 mm |
Loading weight | 40ton - 60 ton |
Container twist lock | 8/12 pcs |
Main beam | Q345B steel |
Side beam | 16 U shaped steel or I shaped steel |
Axle brand | 13 ton axle FUWA/BPW/TITAN brand |
Traction pin | 2” or 3.5” |
Landing gear | Standard 28 ton, brand optional |
Suspension system | Mechanical suspension, air suspension is optional |
Tire | 12.00R22.5 Triangle brand tires, others tires optional |
Brake | 6 big chamber brake system |
Tool box | 1 unit |
Side marker lamp | LED type |
Voltage | 24V |
Feature:
1. Titan skeleton trailer uses high strength steel Q345 to make the girders with higher bearing capacity and service life of more than 10 years.
2. The container trailer is reinforced with a girders under the gooseneck. Gooseneck double-layered beam vertical board. When the vehicle is overloaded, the deformation is small and better.
3. We optional JOST legs are recognized worldwide as famous brand accessories. Better carrying capacity and long service life.
4. The suspension is reinforced before, after and after the suspension. Separate road conditions for Africa involve meeting dirt roads and poor road conditions.
2 axle 20ft Skeleton Container Trailer Details Video:
Through these videos, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.
If you are interested, welcome to inquire! Please fill in your contact information and suggestions! Thank you!
