products

TITAN Tri Axle Container Chassis for Sale | 40ft Container Chassis

Basic Information
Place of Origin: China
Brand Name: TITAN
Certification: CE
Model Number: Skeleton Trailer
Minimum Order Quantity: 1 unit
Price: USD 6000-8000
Packaging Details: Bulk cargo or RORO shipping
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Unit/Units per Month
Detail Information
Other Name: Skeletal Trailer Material: Carbon Steeel
Payload: 50-60T Axle: 3 Axles
Tire: 8 Units Landing Leg: Jost
Braking System: Wabco King Pin: 2in Or 3.5in Jost Brand
Suspension: Heavy Mechanical Suspension

Product Description

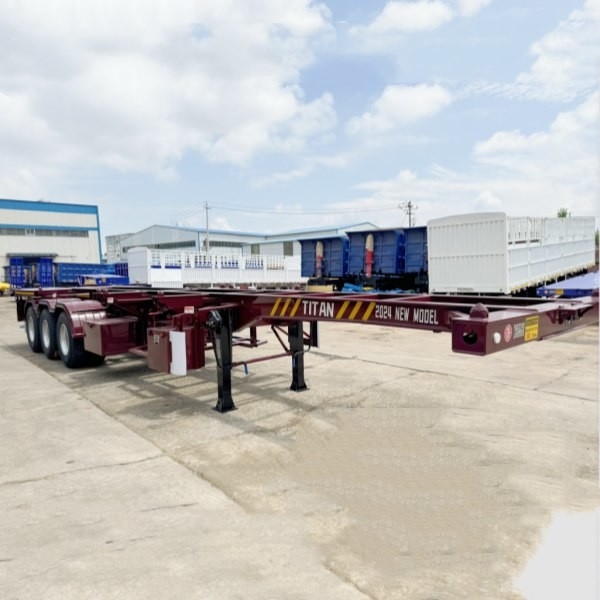

TITAN 3 Axle 40Ft Skeleton Trailer



Transportable 20ft and 40ft containers

The 40ft skeleton trailer for sale is designed to be flexible, and 20-foot and 40-foot containers can be transported by it. In order to make it more convenient to enter and exit different ports and transportation stations, the multi-compatibility feature can adapt to the needs of different customers and improve the transportation efficiency of the 40ft skeleton trailer for sale.

Tri Axle Container Chassis for Sale Price : 9700USD

1. Applicability
Having a partial floor

The design of the container chassis trailer for sale includes a partial floor.It is helpful to enable the container chassis trailer for sale to adapt to a wider range of cargo transportation needs. The partial floor not only enhances the safety of the cargo, but also makes loading and unloading better.

2. Automatic adjustment arm

The tri axle container chassis is matched to an automatic adjustment arm that can automatically adjust based on the height of the container. This feature about tri axle container chassis enhances the flexibility of loading and unloading.It is premium to get stable fixation under different container specifications.In addiation, it reduces the complexity of new driver's operation.

TITAN Tri Axle Container Chassis for Sale  40ft Container Chassis

TITAN Tri Axle Container Chassis for Sale | 40ft Container Chassis

TITAN Tri Axle Container Chassis for Sale  40ft Container Chassis

TITAN Tri Axle Container Chassis for Sale 40ft Container Chassis

TITAN Tri Axle Container Chassis for Sale  40ft Container Chassis




Specification of Tri Axle Container Chassis for Sale

Type 3 Axle 40ft Container Chassis
Overall dimensios 12500x2500x1500mm
Loading weight 60ton - 80 ton
Container twist lock 12 pcs
Main beam Q345B steel,500mm Height,8mm Thick
Side beam 16 U shaped steel or I shaped steel.  160mm Width
Cross beam 100mm
Axle brand 16 ton axle JOST brand
Traction pin 2” or 3.5”
Landing gear Standard 28 ton, brand optional
Suspension system Mechanical suspension, air suspension is optional
King Pin 70mm
Tire 12.00R22.5 Triangle brand tires, others tires optional
Brake 6 big chamber brake system
Brake Pads 220mm
Tool box 1 unit
Side marker lamp LED type
Voltage 24V



Streme Durability of 40ft Container Chassis

1. Suspension ribs are stretched

For the tri axle container chassis for sale, the stretched suspension rib designed carefully is benificial to provide stronger support. This design is good at perfectly dispersing the load pressure and enhancing the durability of the 40 ft tri axle chassis under complex road situations.It reduces fatigue damage, and extend the service life.

2. Thickened leaf springs

The tri axle container chassis for sale useded thickened leaf springs is good at enhancing the vehicle's load-bearing capacity and stability. Through the special design, the impact caused by road conditions is greatly absorbed. And trailer compressive strength is enhanced. It also reduces damage caused by bumps.

3. Q345 high-strength structural steel

Q345 high-strength structural steel is famous as the main material of the vehicle body. This steel has excellent tensile strength and toughness. Under various transportation situations, the 40ft container chassis is outstanding in maintaining stability and durability. It's purpose is to ensure the long-term and efficient operation of the 40 ft tri axle chassis.



TITAN Tri Axle Container Chassis for Sale  40ft Container Chassis

Video of 40ft Container Chassis

Showing you the video of TITAN Tri Axle Container Chassis for Sale | 40ft Container Chassis.

If you are satisfied with these details of container chassis trailer for sale, please give us your contact methods kindly.

TITAN Tri Axle Container Chassis for Sale  40ft Container Chassis

Advantage of 3 Axle 40Ft Skeleton Trailer for Sale

1. Carrying capacity
500mm high main beam

The main beam height of the s tri axle container chassis reaches 500mm. It significantly enhances the overall carrying capacity of tri axle container chassis. The higher main beam can provide better cargo distribution and support. It makes the long-time stable of the 40 ft tri axle chassis's body structure when fully loaded.

Three-bridge design

While adopts a three-bridge design, the carrying capacity of 40 ft tri axle chassis is enhanced significantly. For 40 ft tri axle chassis, the three-bridge layout dispersing the load can reduce the burden of each bridge. It also enhances the stability and controllability of the 40ft container chassis when carrying streme heavy goods..

Automatic submerged arc welding technology

For 40ft container chassis, the automatic submerged arc welding technology is adopted to ahieve the firmness of the integrated structure. This process not only enhances the quality and strength of welding, but also avoids the errors caused by new-driver's operation. It also enhances the wear resistance and impact resistance of the total frame .

2. Safety
Container lock

The 40ft container chassis is matched to an efficient container lock that can firmly and tightenly fix the container. It ensures that the container can be completely safe during transportation whether it is driving at high speed or making sharp turns. This safety feature greatly reduces the risk of damage to the goods.

Spare tire rack

The design of the tri axle container chassis for sale includes a spare tire rack.It provides a convenient way to store and replace spare tires. In the event of an emergency tire replacement, the design of the spare tire rack can save time, improve safety and work efficiency.

Shorter diagonal support

The tri axle container chassis for sale is matched to a shorter diagonal support. This design effect significantly reduces the center of gravity and improves overall stability. The short diagonal support is exllent in preventing the risk of rollover, but also enhancing the driving stability of the v on uneven roads.They offering a  real guarantee for safe transportation.
