Place of Origin: | China |
---|---|
Brand Name: | TITAN |
Certification: | CE |
Model Number: | Container Chassis Trailer |
Minimum Order Quantity: | 1 unit |
Price: | USD 6000-9000 |
Packaging Details: | Bulk cargo or RORO shipping |
Delivery Time: | 25 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 Unit/Units per Month |
Other Name: | Container Chassis Trailer | Material: | Carbon Steeel |
---|---|---|---|
Payload: | 60-80T | Axle: | 2/3/4 Axles |
Tire: | 8/12/16 Units | Landing Leg: | Jost |
Braking System: | Wabco | King Pin: | 2in Or 3.5in Jost Brand |
Suspension: | Heavy Mechanical Suspension |

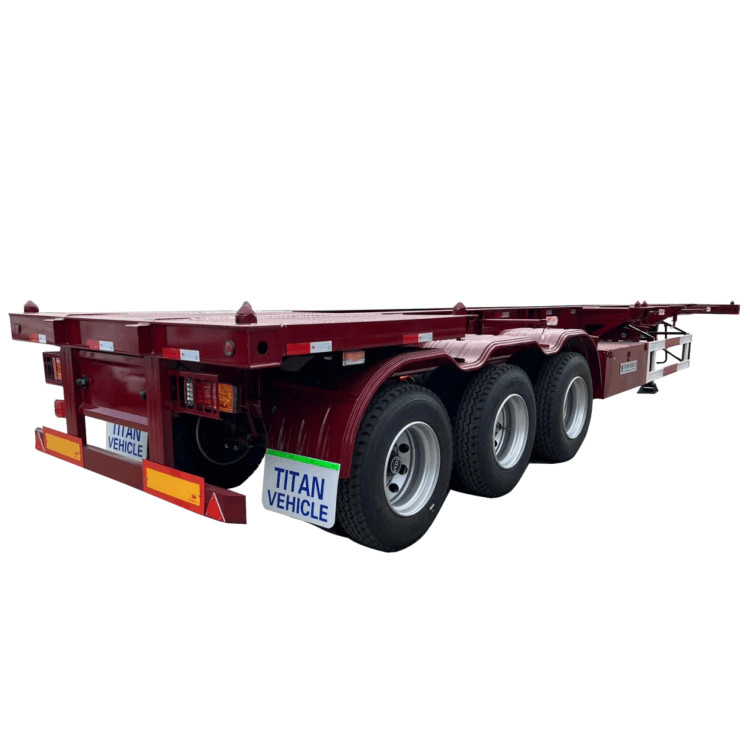

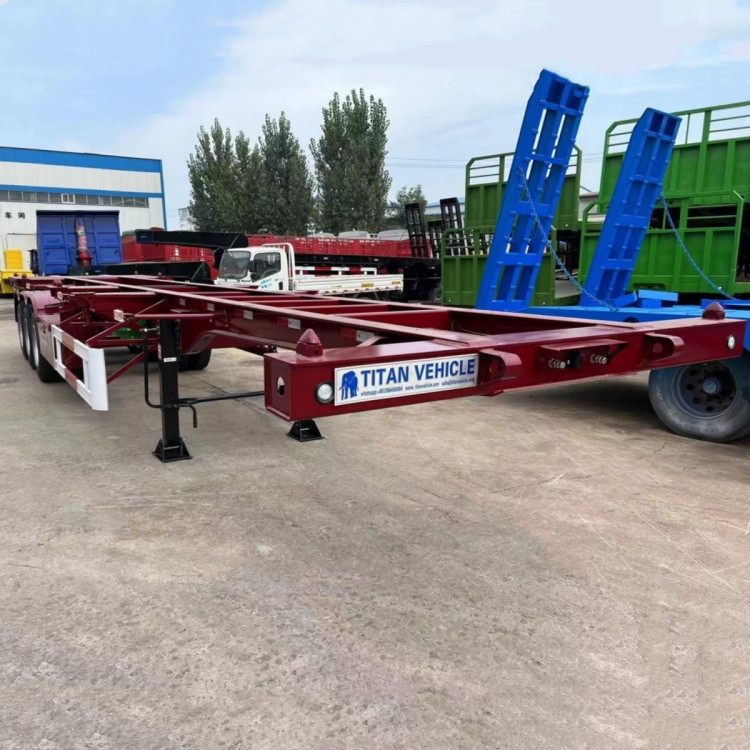

TITAN shipping container chassis trailer for sale uses Q345 high-strength steel, and the steel has passed the high-strength steel weldability test, welding tensile and bending forming tests of professional institutions, and has high reliability;
Professional design team, leading technology, Tri axle container chassis trailer has quality assurance; 40 foot container chassis trailer for sale paint spraying adopts the method of primer and top coat, the paint film thickness is uniform, no fading, no paint falling off.
We can provide all the models you need and support customization. Please leave your enquiry if you have any questions.
Feature:
1. Titan skeleton trailer uses high strength steel Q345 to make the girders with higher bearing capacity and service life of more than 10 years.
2. The container trailer is reinforced with a girders under the gooseneck. Gooseneck double-layered beam vertical board. When the vehicle is overloaded, the deformation is small and better.
3. We optional JOST legs are recognized worldwide as famous brand accessories. Better carrying capacity and long service life.
4. The suspension is reinforced before, after and after the suspension. Separate road conditions for Africa involve meeting dirt roads and poor road conditions.
Specification:
Type | Container Chassis Trailer |
Overall dimensios | 12500x2500x1550 mm |
Loading weight | 60ton - 80 ton |
Container twist lock | 8/12 pcs |
Main beam | Q345B steel |
Side beam | 16 U shaped steel or I shaped steel |
Axle brand | 13 ton axle FUWA brand |
Traction pin | 2” or 3.5” |
Landing gear | Standard 28 ton, brand optional |
Suspension system | Mechanical suspension, air suspension is optional |
Tire | 12.00R22.5 Triangle brand tires, others tires optional |
Brake | 6 big chamber brake system |
Tool box | 1 unit |
Side marker lamp | LED type |
Voltage | 24V |
If you are interested, welcome to the inquire! Please fill in your contact information and suggestions! Thank you!
